7KW Type 1 EV Charger Station for Electric Car Charging

Short Description:

Wall mounted electric vehicle charing station

Model No.: GS7-AC-H01

This unit is a mode 3 charging device that can be used to charge a electric or plug in hybrid vehicle, it has a type 1, five meter tethered cable and plug. Its intelligent hardware communicates with your vehicle for safe, efficient charging.


Product Detail

Product Tags

Feature

● GS7-AC-H01 is our unique design with small size, streamline outline.
● Wireless communication WiFi/Bluetooth, smart charge or schedule charge by App is optional.
● It is including 8 protect function for safe charging.
● Ttype 1 plug for US customer.

Descriptions of product

● 5m Type 1 tethered cable charges any electric vehicle or plug in hybrid (EV / PHEV) with a Type 1 socket.
● 1400mm High Aluminium ground mounting post with base plate and fixings.
● Easy to install, unit doesn't have to be opened for installation.
● Built in 6mA DC fault detection, Over Voltage, Short Circuit, Over Load and Earth Leakage Protection. Meets latest regulations regarding safety.
● Works with all makes and models of EV and PHEV with a type 1 socket (or with Type 2 vehicles when an adapter is used) and is compatible with all vehicle charging timers.
● 1 year warranty (when installed by a qualified electrician).
● LED light indicating charge status.
● Wall mounting accessories and cable tidy hook included.
● Emergency stop button
● CE certification.
● IP65 weatherproof rated for indoor or outdoor installation.
● 230v, single phase.

Specifications of product

Product Name 7KW Type 1 EV Charger Station for Electric Car Charging
Input Rated voltage 230V AC
Input Rated Current 32A
Input Frequency 50/60HZ
Output Voltage 230V AC
Output Maximum Current 32A
Rated Power 7kw
Cable Length (M) 3.5/4/5
IP Code IP65 Unit Size 340*285*147mm (H*W*D)
Impact Protection IK08
Work Environment Temperature -25℃-+50℃
Work Environment Humidity 5%-95%
Work Environment Altitude <2000M
Product Package Dimension 480*350*210 (L*W*H)
Net Weight 3.8kg
Gross weight   4kg
Warranty 2 Years

Advantages of product

● Flexible Installation -wall mount and pedestal mount options, for pedestal mount you need extra pole ).

wall mount
wall mount1

● Designed Conveniently - Built-in cable management and safety lock. Dynamic LED lights show WiFi connection and charging behavior.
● Ease Control - you can add app function so you will control the charging anytime and anywhere.

7KW Type 1 EV Charger Station for Electric Car Charging 3
7KW Type 1 EV Charger Station for Electric Car Charging 4

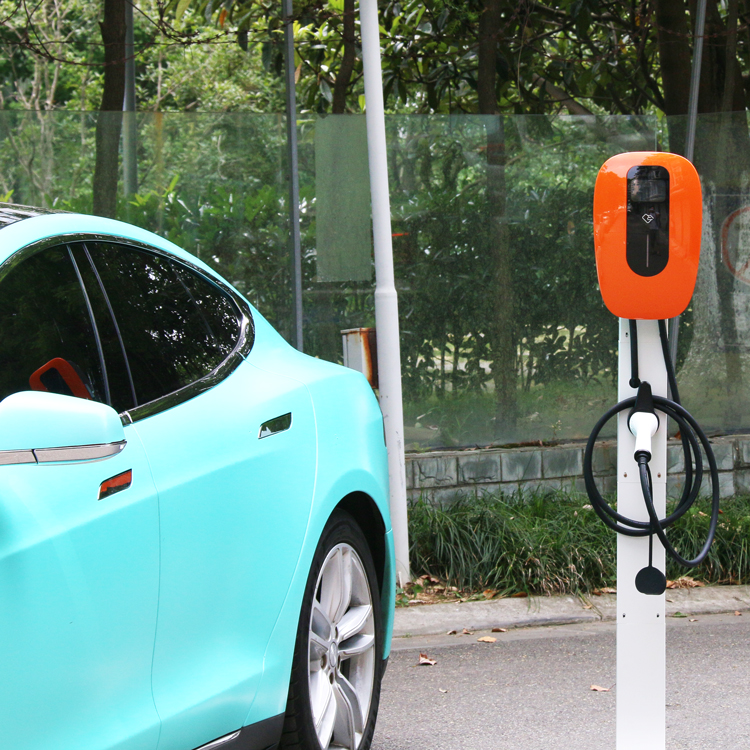

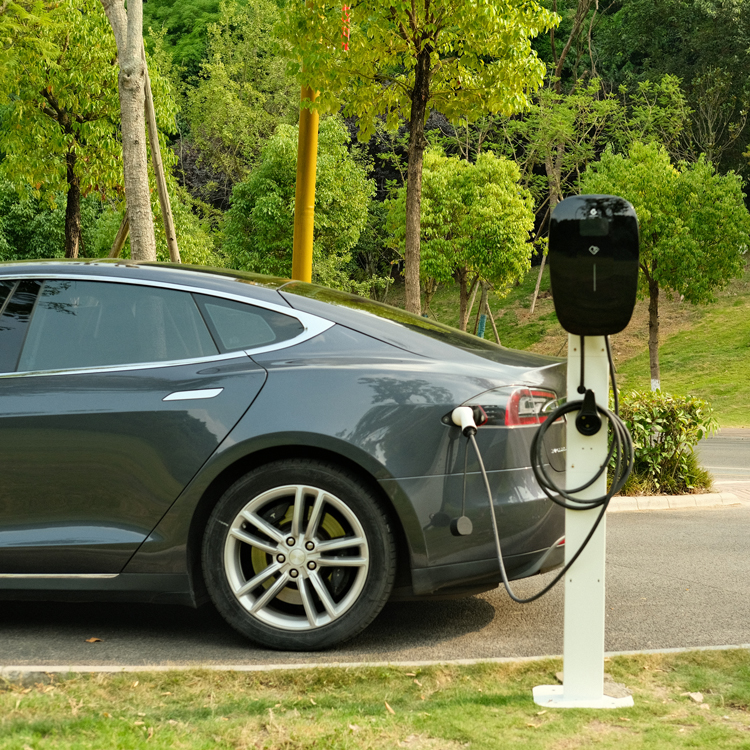

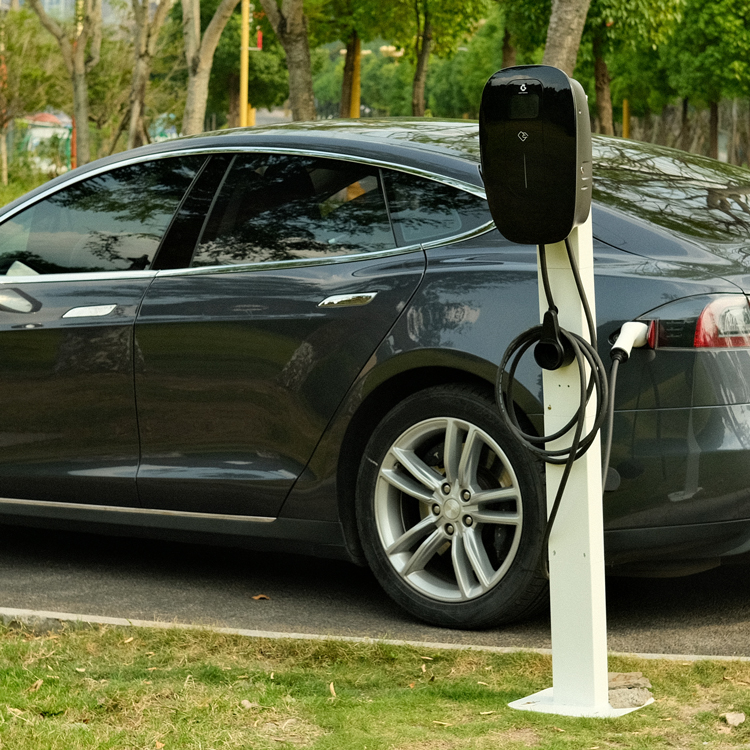

Product case display

Product case display08
Product case display9
Product case display10
Product case display11
Product case display12
Product case display13
Product case display14
Product case display15
Product case display016
