Products
B02
| product name | AC EV Charger | |
| model | GS-AC7-B02 | |
| Dimensions (mm) | 340*290*150mm | |
| AC power | 220Vac±20% ; 50Hz±10% ; L+N+PE | |
| Rated current | 32A | |
| Output Power | 7kW | |
| working environment | Altitude: ≤2000m; Temperature: -20℃~+50℃; | |
| Communication | OCPP1.6, Erthnet | |
| Networking | 4G, Wifi,Bluetooth | |
| Operation mode | Offline billing, Online billing | |
| Protective function | Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc. | |
| Start Mode | Plug&Play / RFID Card / APP | |
| Home load balancing | Option | |
| Protection class | ≥IP65 | |
| Installation method | Wall-mounted, Pole-Mounted | |
STANDARD HEAT SINK
The heat sink can effectively dissipate the high temperature generated during charging to ensure the stable running of the device
APP
The charging pile can be controlled remotely through the APP, timed charging, viewing history, adjusting current, adjusting DLB and other functions.
We support software customization, which can support free design of UI interface and APP logo renderings.
The APP can be downloaded for Android and IOS.

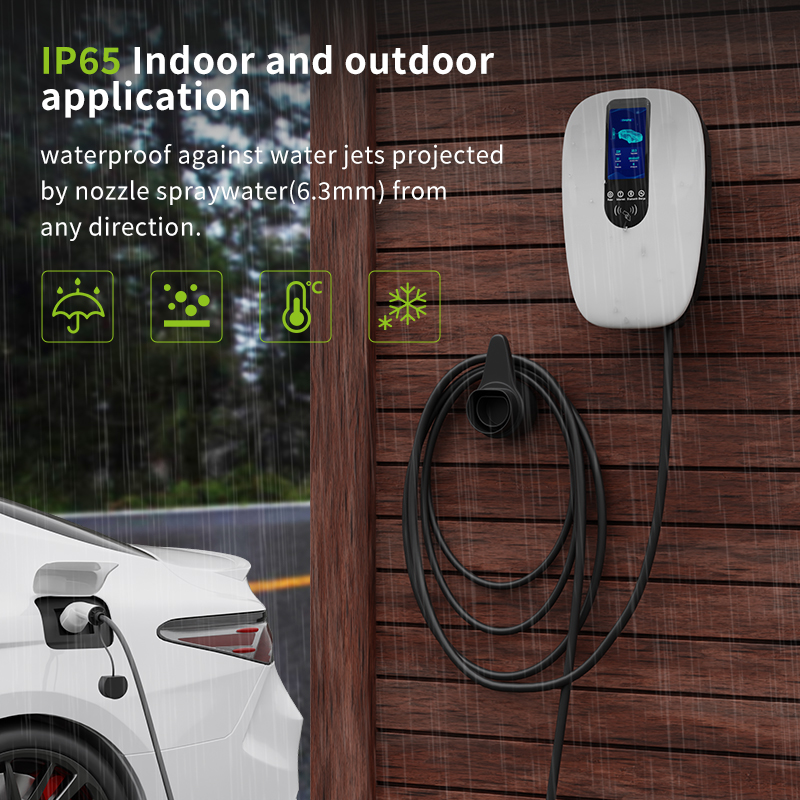

IP65 Waterproof
IP65 level waterproof, lK10 level equation, easy to cope Outdoor environment, can effectively prevent rain,snow, powder erosion.
Water proof/Dust-proof/Fireproof/Protectionfrom cold
