Type 2 EVSE 11KW Wallbox EV Charger 16A For Electric Vehicle Car

Products

Type 2 EVSE 11KW Wallbox EV Charger 16A For Electric Vehicle Car

Short Description:

Model No.: GS11-AC-B01

Introduction: GS11-AC-B01 EV charging stations are suitable for all commercial charging needs. It delivers all the safety and smart charging features you need to make  charging easy, reliable and cost-effective to your customers, tenants and employees. It’s built for long-time service, water proof and designed to work at -30 to 55 °C ambient temperature, never fear the freezing or the scorching heat. Customer can customized some features including the color, logo, functions , casing etc.


Product Detail

Product Tags

Feature

 Easy to install : Only need to fix with bolts and nuts, and connect the electric wiring according to the manual book.

 Simple to charge : Plug & Charge, or card to charge, or controlled by App, RFID , Wifi ,it depends on your choice.

● Compatible All EVs : It's built to be compatible with all the EVs with the type 2 plug connectors. All the charging pile passed CE and cable length adopted high quality material TPE and TPU

Descriptions of product

Power Supply 3P+N+PE
Charging Port Type 2 cable
Enclosure Plastic PC940A
LED Indicator Yellow/ Red/ Green
LCD Display 4.3'' color touch LCD
RFID Reader Mifare ISO/ IEC 14443A
Start Mode Plug&Play/ RFID Card/ APP
Ememergency Stop YES
Communication 3G/4G/5G,WIFI, LAN(RJ-45), bluetooth,OCPP 1.6 OCPP 2.0 optional RCD (30mA Type A+ 6mA DC)
Electrical Protection Over Current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/under voltage protection, Over/under frenquency protection, Over/under temperature protection.
Certification CE, ROHS, REACH,FCC and what you need
Certification Standard EN/IEC 61851-1:2017,  EN/IEC 61851-21-2:2018
Installation Wall-mount Pole Mount

Specifications of product

Product Name EVSE Wallbox EV Charger For Electric Vehicle Car
Input Rated voltage 400V AC
Input Rated Current 16A
Input Frequency 50/60HZ
Output Voltage 400V AC
Output Maximum Current 16A
Rated Power 11kw
Cable Length (M) 3.5/4/5
IP Code IP65 Unit Size 340*285*147mm (H*W*D)
Impact Protection IK08
Work Environment Temperature -25℃-+50℃
Work Environment Humidity 5%-95%
Work Environment Altitude <2000M
Product Package Dimension 480*350*210 (L*W*H)
Net Weight 4.5kg
Gross weight 5kg
Warranty 2 Years

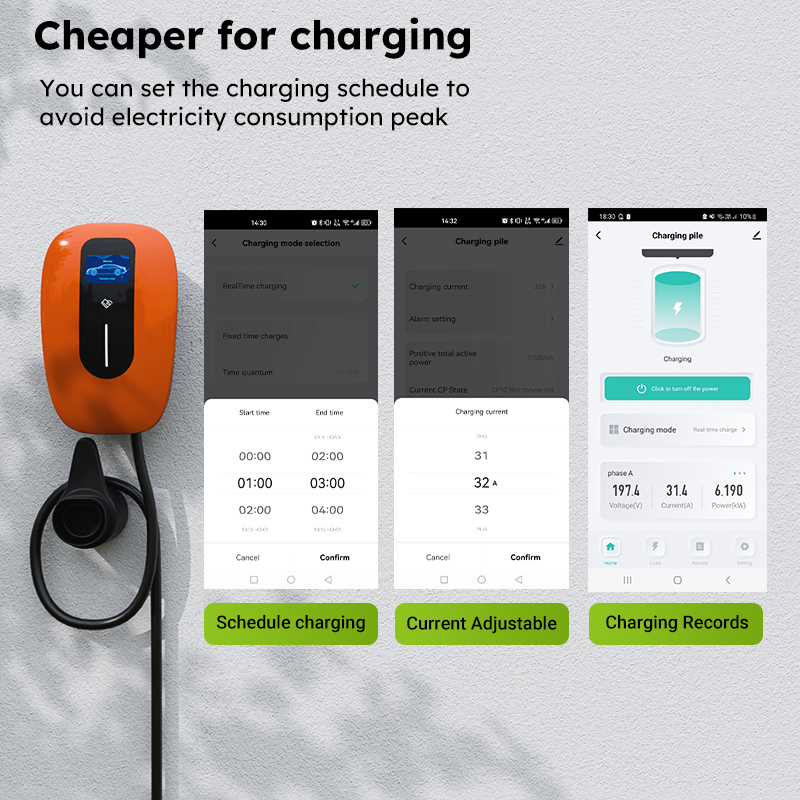

Advantages of product

Designed Conveniently - Built-in cable management and safety lock. Dynamic LED lights show WiFi connection and charging behavior.

Reduced Maintenance, Lower Consumption, Less Noise, Lower Emissions.

Ease of use - Get access to your property’s real-time and historical charging data through our smart charging dashboards or easy-to-use smartphone apps available for Android or iOS. Building managers can enable charging access for employees or tenants via RFID cards.

7KW Type 1 EV Charger Station for Electric Car Charging 3
7KW Type 1 EV Charger Station for Electric Car Charging 4

Industrial strength rated for indoor and outdoor use, weather-resistant, dust-proof, polycarbonate housing and rugged cables and plugs make it durable and reliable in all conditions.

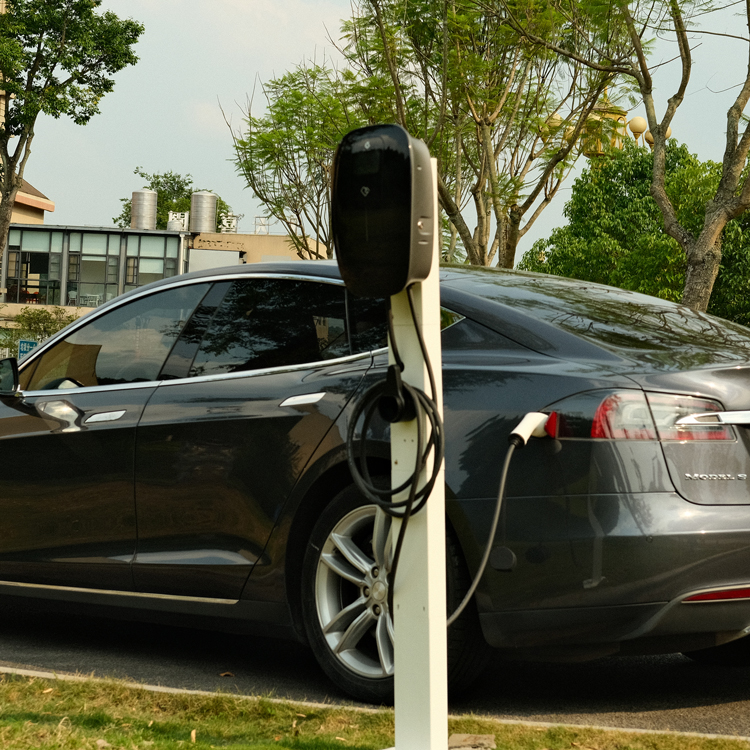

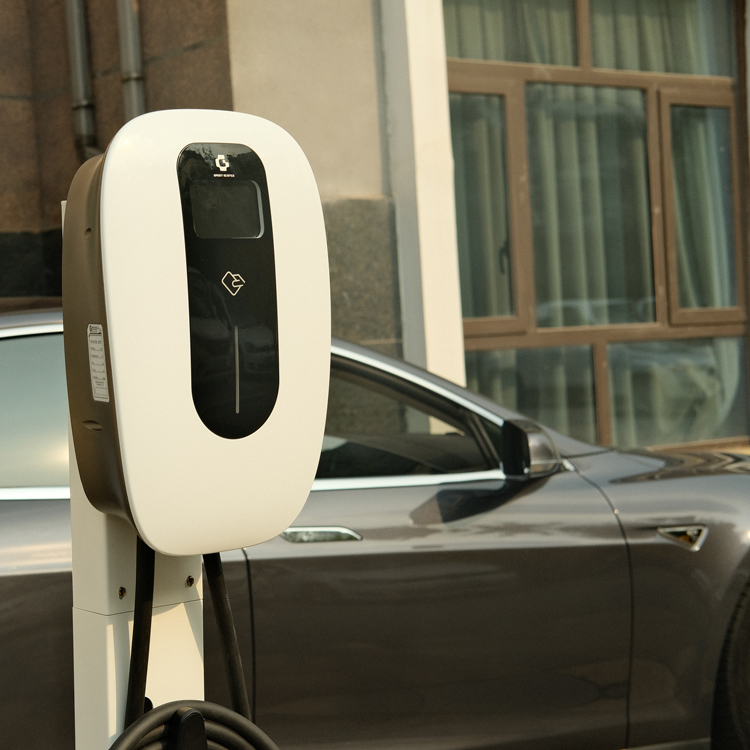

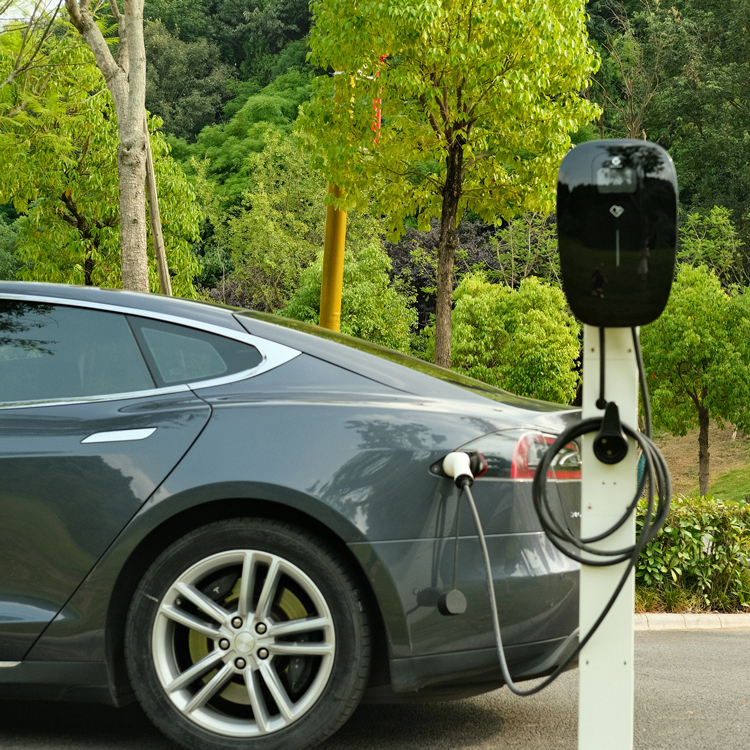

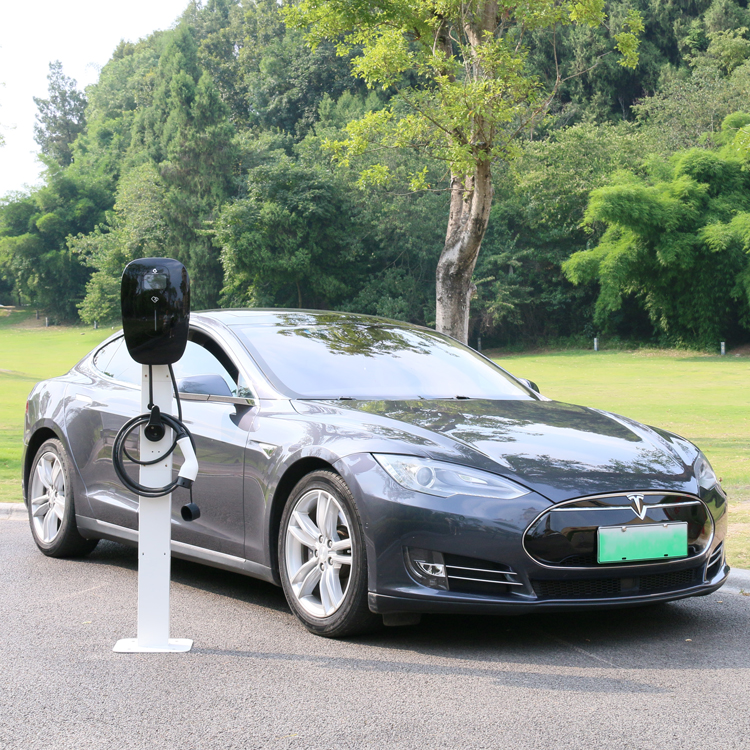

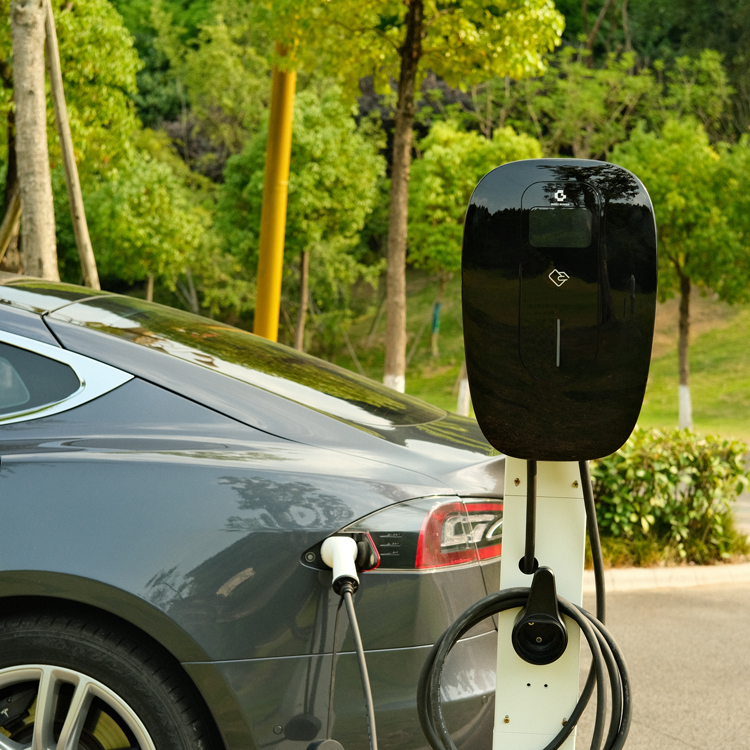

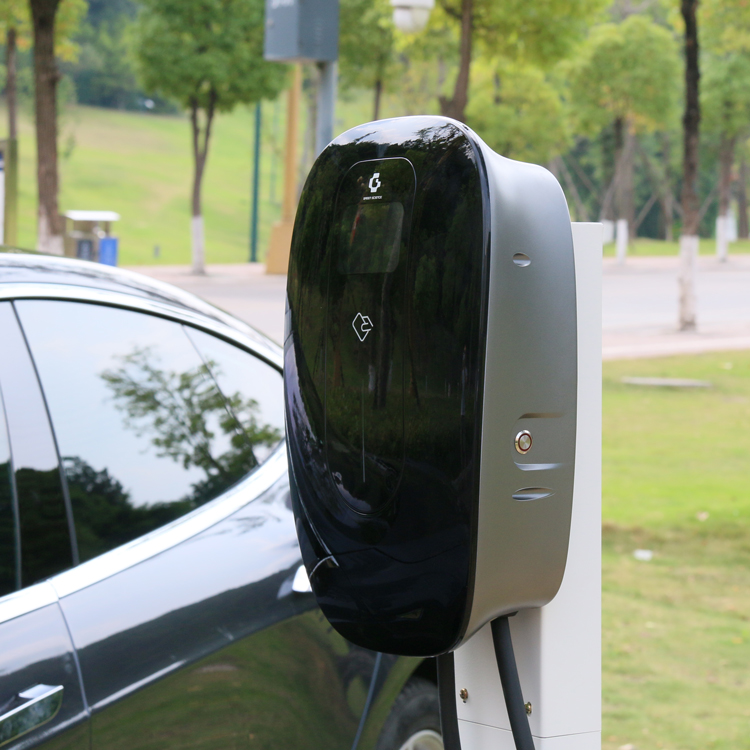

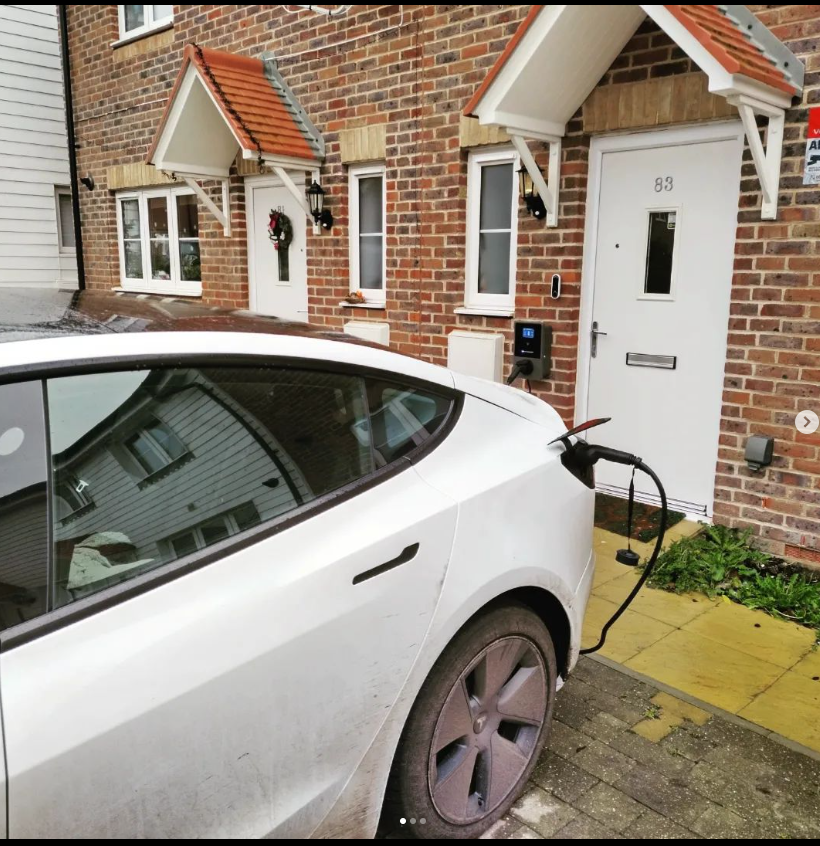

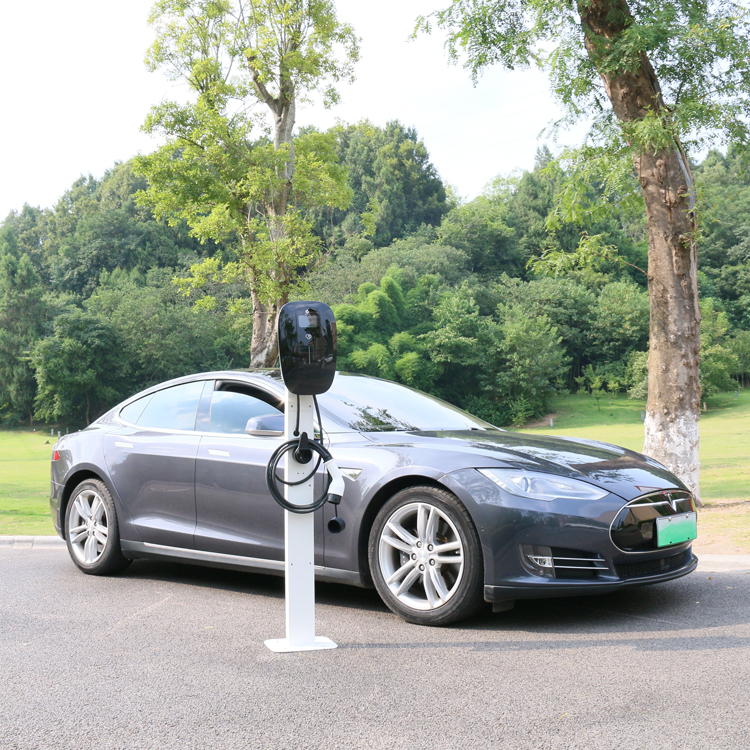

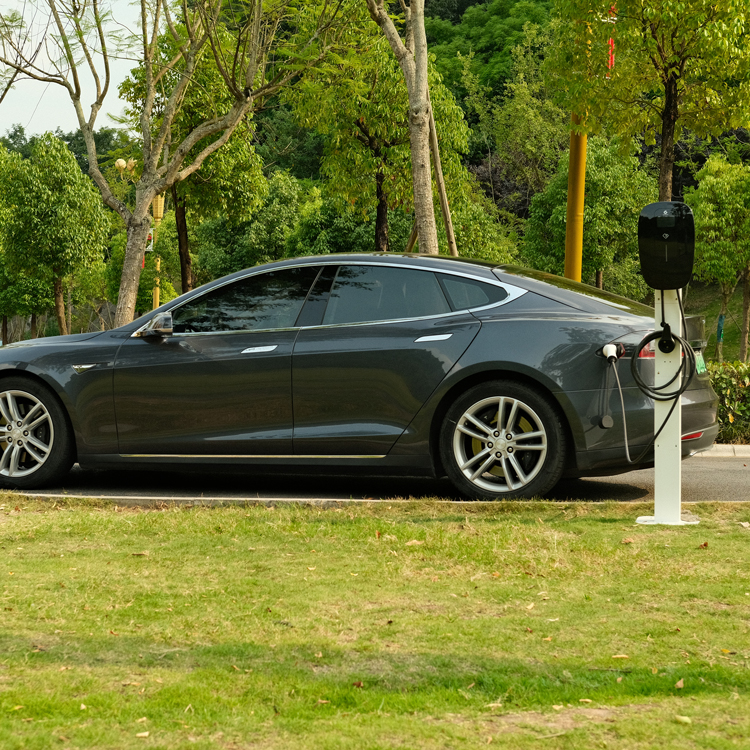

Product case display

Product case display08
Product case display9
Product case display10
Product case display11
Product case display12
Product case display13
Product case display14
Product case display15
Product case display016
