APP Control 16A EV wallbox Electric Charger for Electric Car

Short Description:

Home Use Wallbox Electric Charger for Electric Car

Model No.: GS11-AC-H01

GS11-AC-H01 delivers all the safety and smart charging features you need to make home charging easy, reliable and cost-effective. It is designed to provide a premium charging experience that can be upgraded as technology changes, while providing freedom of choice, which is a compact, high power, fully ruggedized, WiFi-equipped EVSE. Also affordable priced and fully customizable, including color, colorful charging cable, is acceptable.


Product Detail

Product Tags

Feature

● GS11-AC-H01 is designed innovatively with minimal size, streamline outline.
● Wireless communication wifi/buletooth, smart charge or schedule charge by App is available.
● It provides 6mA DC residual current protection and anti welding protection, which is more secure.
● Two types of charging cable can be choosen, type 1 or type 2.

Descriptions of product

Power Supply 3P+N+PE
Charging Port Type 2 cable
Enclosure Plastic PC940A
LED Indicator Yellow/ Red/ Green
LCD Display 4.3'' color touch LCD
RFID Reader Mifare ISO/ IEC 14443A
Start Mode Plug&Play/ RFID Card/ APP
Ememergency Stop YES
Communication 3G/4G/5G,WIFI, LAN(RJ-45), bluetooth,OCPP 1.6 OCPP 2.0 optional RCD (30mA Type A+ 6mA DC)
Electrical Protection Over Current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/under voltage protection, Over/under frenquency protection, Over/under temperature protection.
Certification CE, ROHS, REACH,FCC and what you need
Certification Standard EN/IEC 61851-1:2017,  EN/IEC 61851-21-2:2018
Installation Wall-mount, Pole Mount

Specifications of product

Product Name APP Control 16A EV wallbox Electric Charger for Electric Car
Input Rated voltage 400V AC
Input Rated Current 16A
Input Frequency 50/60HZ
Output Voltage 400V AC
Output Maximum Current 16A
Rated Power 11kw
Cable Length (M) 3.5/4/5
IP Code IP65 Unit Size 340*285*147mm (H*W*D)
Impact Protection IK08
Work Environment Temperature -25℃-+50℃
Work Environment Humidity 5%-95%
Work Environment Altitude <2000M
Product Package Dimension 480*350*210 (L*W*H)
Net Weight 4.5kg
Gross weight   5kg
Warranty 2 Years

Advantages of product

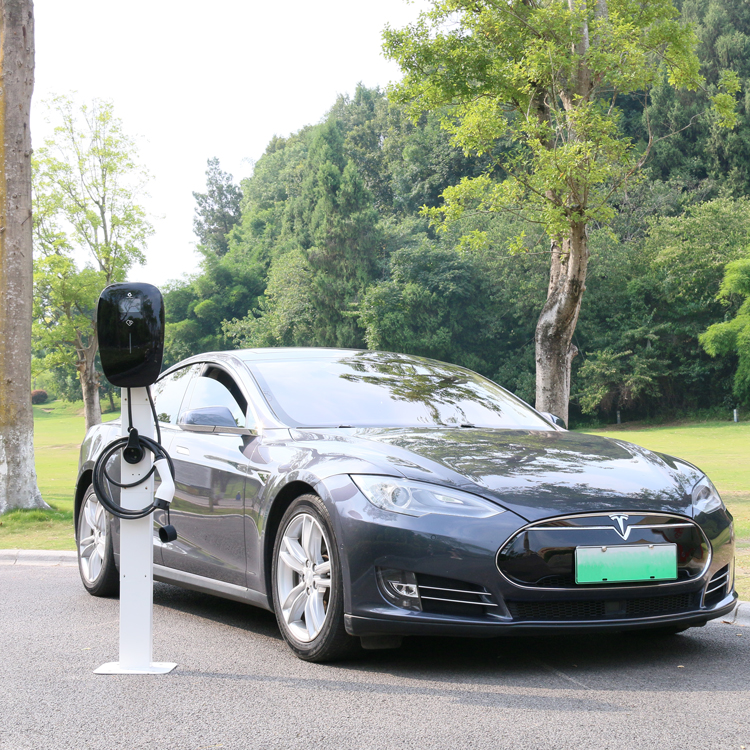

● Flexible Installation -There are three installation options to be designed(hardwire, wall mount, or pedestal mount).

APP Control 16A EV wallbox Electric Charger for Electric Car3

● Lock installation - It is safe for indoor and outdoor installation.

Lock installation2
Lock installation
Lock installation1
Lock installation3

● Timed charging - It makes driving your electric car cheaper when rates are lower.
● Dynamic LED lights - Display power, connection and charging status.

TYPEB RCD(TYPE A+DC 6mA)
All DC leakage (>6mA) can be monitored and all current can be cur off instantly within 10S

Type 1 EV wallbox Charger 11kw3

● 25 ft cable - maximum free installation required

Note: The plug and cable can be separated. You can choose plug or cable only.

Type 1 EV wallbox Charger 11kw4

● Accessibility - Home use with intelligent App control, Smart charge or scheduled charge by App.

Lock installation4

Product case display

Type 1 EV wallbox Charger 11kw10
Type 1 EV wallbox Charger 11kw7
Type 1 EV wallbox Charger 11kw9
Type 1 EV wallbox Charger 11kw05
Type 1 EV wallbox Charger 11kw6
Type 1 EV wallbox Charger 11kw8
