WiFi-enabled 32-amp smart EV charging station


WiFi-enabled 32-amp smart EV charging station

Charging wallbox for EV charging at your home

Model No.: GS7-AC-H01

GS7-AC-H01 is a WiFi-enabled 32-amp smart EV charging station with innovative design concepts to provide a premium charging experience that can be upgraded as technology changes, while providing freedom of choice, which is also a compact charging option that offers the option of a pedestal or wall mount. Affordable priced and fully customizable. (including color, colorful charging cable).

Product Detail

Product Tags


● GS7-AC-H01 is designed innovatively with minimal size, streamline outline.
● Wireless communication wifi/buletooth, smart charge or schedule charge by App is available.
● It provides 6mA DC residual current protection and anti welding protection, which is more secure.
● Two types of charging cable can be choosen, type 1 or type 2.

Descriptions of product

Power Supply 1P+N+PE
Charging Port Type 2 cable
Enclosure Plastic PC940A
LED Indicator Yellow/ Red/ Green

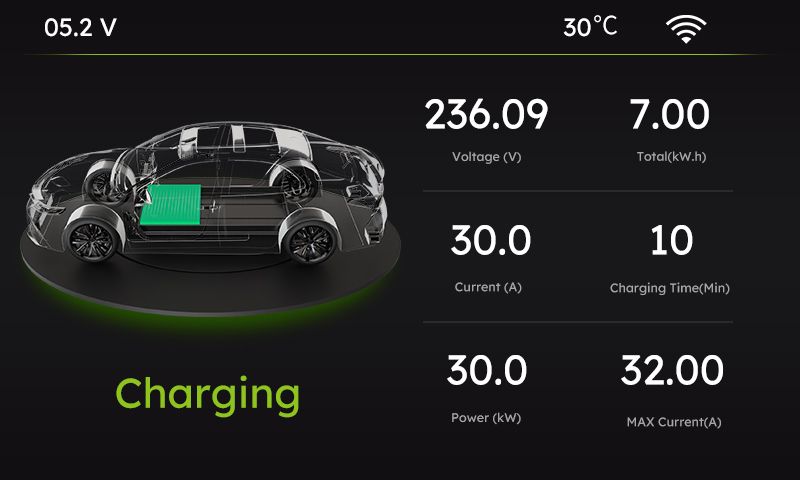

LCD Display 4.3'' color touch LCD
RFID Reader Mifare ISO/ IEC 14443A
Start Mode Plug&Play/ RFID Card/ APP
Ememergency Stop YES
Communication 3G/4G/5G,WIFI, LAN(RJ-45), bluetooth,OCPP 1.6 OCPP 2.0 optional RCD (30mA Type A+ 6mA DC)
Electrical Protection Over Current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/under voltage protection, Over/under frenquency protection, Over/under temperature protection.
Certification CE, ROHS, REACH,FCC and what you need
Certification Standard EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Installation Wall-mount Pole Mount

Specifications of product

Product Name WiFi-enabled 32-amp smart EV charging station
Input Rated voltage 230V AC
Input Rated Current 32A
Input Frequency 50/60HZ
Output Voltage 230V AC
Output Maximum Current 32A
Rated Power 7kw
Cable Length (M) 3.5/4/5
IP Code IP65 Unit Size 340*285*147mm (H*W*D)
Impact Protection  IK08
Work Environment Temperature -25℃-+50℃
Work Environment Humidity 5%-95%
Work Environment Altitude <2000M
Product Package Dimension 480*350*210 (L*W*H)
Net Weight 3.8kg
Gross weight   4kg
Warranty 2 Years

Advantages of product

● Flexible Installation -There are three installation options to be designed(hardwire, wall mount, or pedestal mount).

WiFi-enabled 32-amp smart EV charging station3
WiFi-enabled 32-amp smart EV charging station4

● Designed Conveniently - Built-in cable management and safety lock. Dynamic LED lights show WiFi connection and charging behavior.
● Ease of use - Home use with intelligent App control, Smart charge or scheduled charge by App.

7KW Type 1 EV Charger Station for Electric Car Charging 3
7KW Type 1 EV Charger Station for Electric Car Charging 4

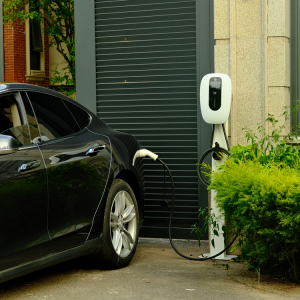

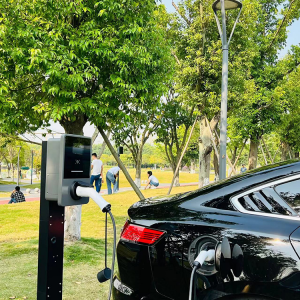

Product case display

Product case display08
Product case display9
Product case display10
Product case display11
Product case display12
Product case display13
Product case display14
Product case display15
Product case display016
